Modul iesiri digitale 8DO - 24 VDC 0.5A
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-digitale-8DO-24-VDC-0-5A-2575.jpg "Modul iesiri digitale 8DO - 24 VDC 0.5A")

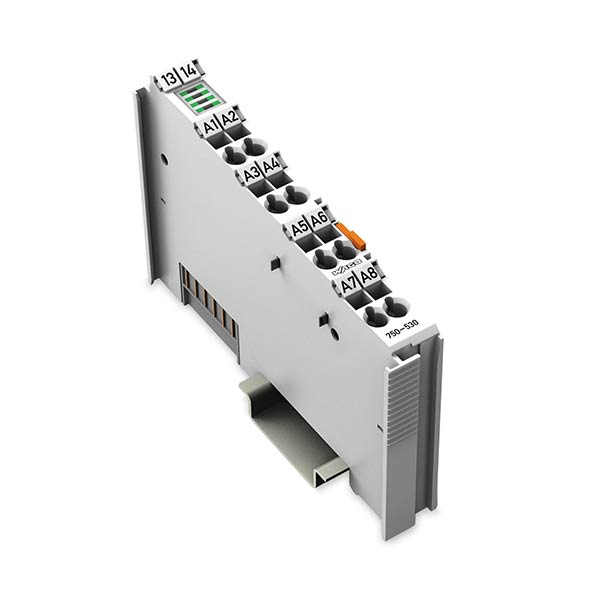

Modul iesiri digitale 8DO - 24 VDC 0.5A - WAGO - 750-530
BRAND: Wago
MOD DE LIVRARE: CURIER
DISPONIBILITATE: STOC LIMITAT
COD PRODUS: 750-530
SHARE
Alege Culoare
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC200-2-ETH-RS-Wago-controller-8636.jpg "PFC200 - 2 ETH RS Wago controller")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/controller-ethernet-G3-SD-Card-2-RJ45-2172.jpg "Controller ETHERNET - G3 SD Card 2 RJ45")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC100-2-ETH-ECO-controller-Wago-2950.jpg "PFC100 - 2 ETH ECO controller Wago")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC100-2ETH-RS-controller-wago-7829.jpg "PFC100 - 2ETH RS controller Wago")

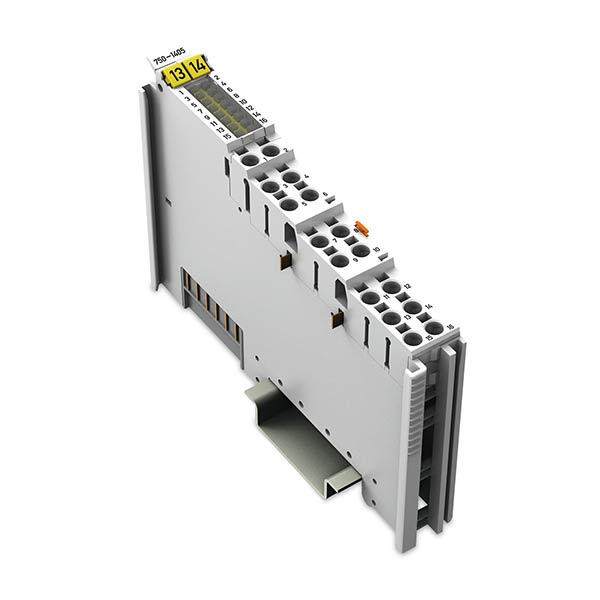

:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-digitale-16DI-24-VDC-3ms-3574.jpg "Modul intrari digitale 16DI - 24 VDC 3ms")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-digitale-16DO-24-VDC-0-5A-5105.jpg "Modul iesiri digitale 16DO - 24 VDC 0.5A")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-digitale-8DI-24-VDC-3ms-8746.jpg "Modul intrari digitale 8DI - 24 VDC 3ms")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-analogice-4AI-2-4-wire-SE-8619.jpg "Modul intrari analogice 4AI - 2-4-wire SE")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-analogice-4AO-2-4-wire-8394.jpg "Modul iesiri analogice 4AO - 2-4-wire")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-analogice-8AI-0-4-20mA-SE-1673.jpg "Modul intrari analogice 8AI - 0/4-20mA SE")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-analogice-4AO-0-10-VDC-1345.jpg "Modul iesiri analogice 4AO - 0-10 VDC")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-capat-controller-wago-6754.jpg "Modul capat controller Wago")
40142 Lei
SPECIFICATII
| Output characteristic | high-side switching |
| Output current per channel | 0,5 A |
| Output current | short-circuit-protected |
| Switching frequency max. | 2 kHz |
| Type of load | resistive, inductive, lamps |
| Inductive load switch-off energy dissipation W (max.) | 0,9 J |
| Max output data width (internal) | 8 Bit |
| System supply voltage | DC 5 V; via data contacts |
| Current consumption, system supply (5 V) | 25 mA |
| Field supply voltage | DC 24 V (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
| Current consumption, field supply (module with no external load) | 15 mA |
| Isolation | 500 V system/supply |
| Indicators | LED (A-H) green: Status DO 1 … DO 8 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity of the power jumper contacts | 10 A |
